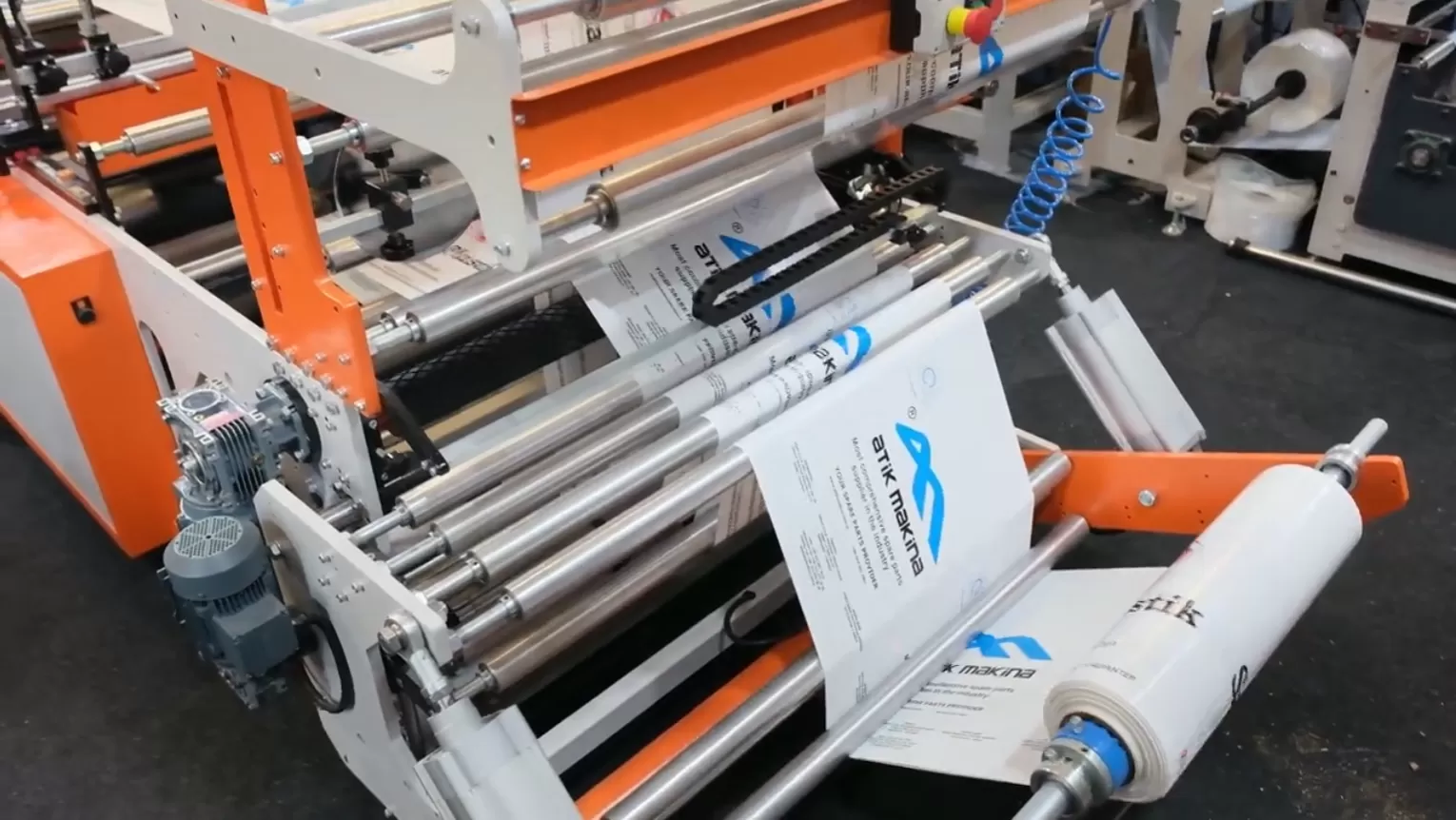

Reinforced Bag – Bag Cutting Machine ATK – 900

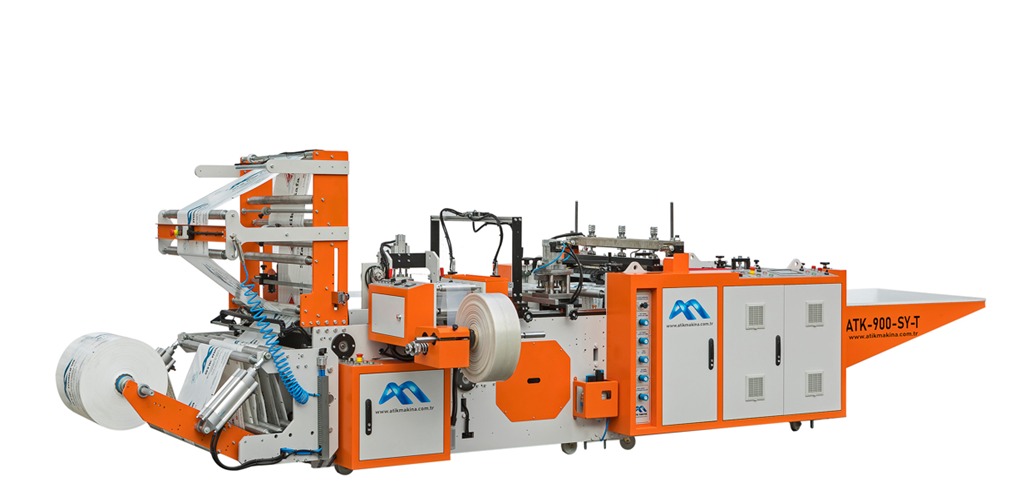

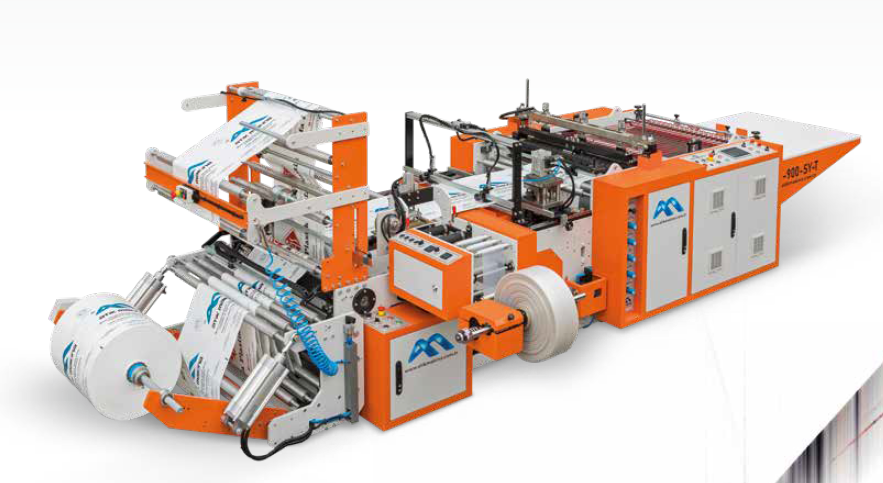

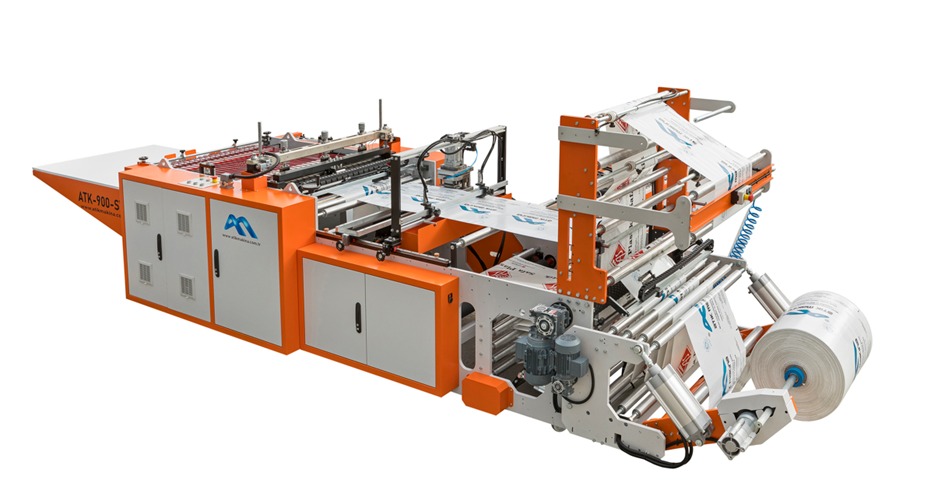

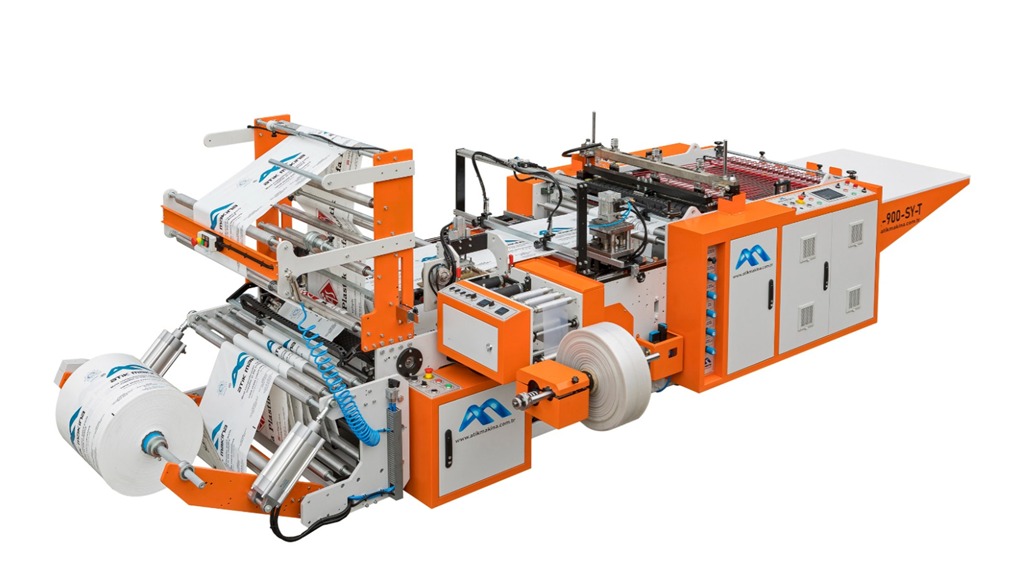

ATK – 900 Reinforced Bag Cutting Machine
The ATK – 900 Reinforced Bag Cutting Machine is a professional production line solution designed for high-quality plastic bag production, offering precise cutting and superior performance.
It is ideal for the production of t-shirt bags, reinforced bags, garbage bags, and printed and unprinted bags.
With its servo motor technology, touch-sensitive control panel, and advanced pneumatic systems, it increases production efficiency.
Technical Specifications
| Maximum Bag Length | 2000 mm (Optional: 3000 mm) |
| Minimum Bag Length | 80 mm |
| Bag Width | 850 mm |
| Film Thickness | 0.020 – 0.08 mm |
| Servo Motor | 6 kW – 1 Piece |
| Main Motor | 1.1 kW – 1 Piece |
| Warp Motor | 1.1 kW – 1 Piece |
| Conveyor Belt Motor | 0.37 kW |
| Edge Control Motor | 0.25 kW |
| Athlete & Pick Jaw Resistances | 4 kW x 2 |
| Lower Jaw Resistance | 1 kW x 2 |
| Total Electricity Consumption | Maximum 20 kW |
| Machine Weight | 2500 kg |
| Machine Dimensions | 6300 x 2250 x 1700 mm (L x W x H) |
Standard Features
- ● Servo motor and inverter system cutting
- ● Printed/unprinted bag production with photocells
- ● HDPE, LDPE, PP, OPP, CPP film compatibility
- ● Pneumatic and reducer ballerina system

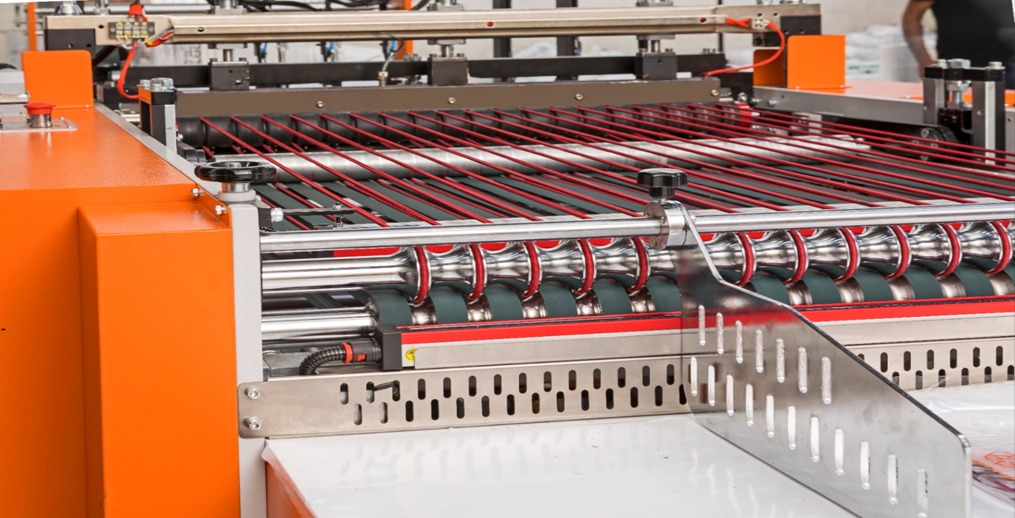

- ● Inverter belt speed control
- ● Edge control and straight line drawing

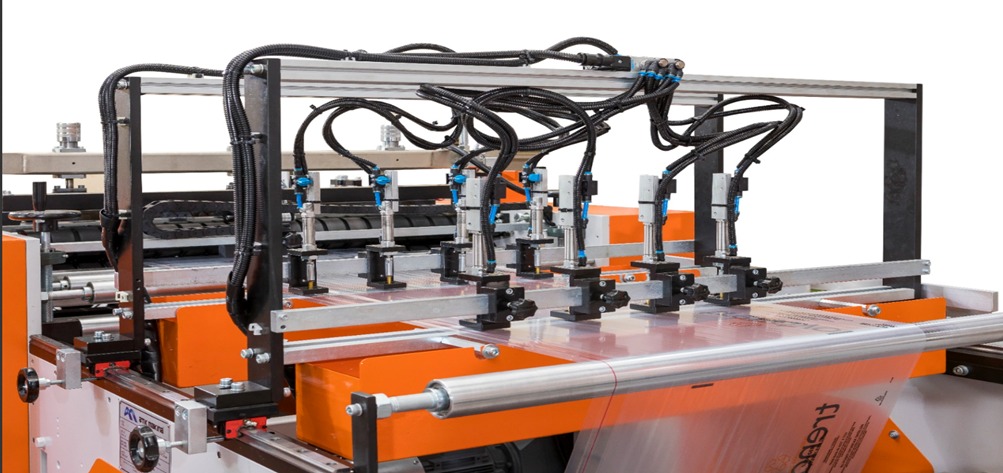

- ● Ø6 hole apparatus (2 units)
- ● Awning jaw, digging jaw, and lower jaw systems
- ● Belt end warning with belt sensor

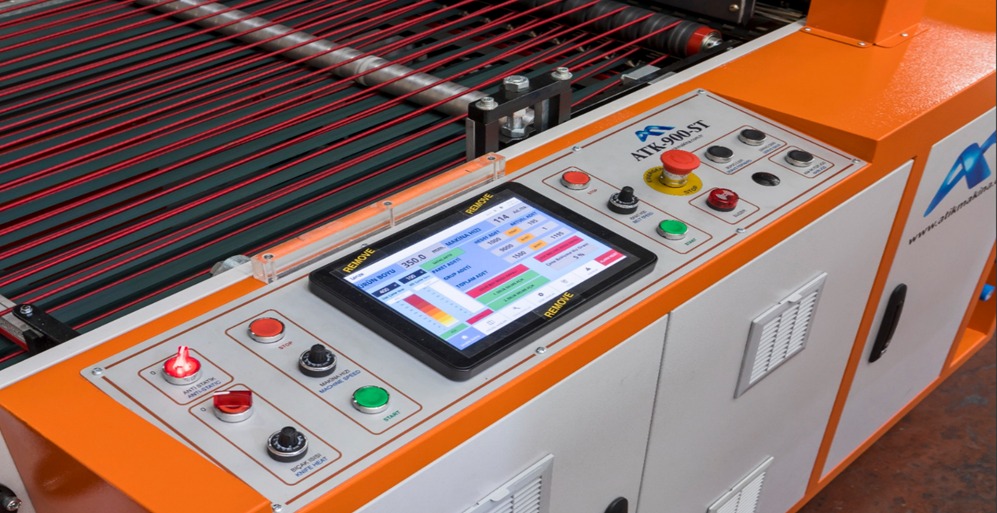

- ● 7” touchscreen operator panel
- ● Anti-static system
- ● EtherCAT-based PLC and driver system
- ● Remote connection support
- ● Air coil brake
- ● Pneumatic roller system
- ● Air comb system
- ● Rotating silicone jaw (optional)
Optional Equipment
- ● Hole drilling apparatus
- ● Hand-joined mold
- ● Bellows apparatus
- ● Air shaft
Advantages
- ● High-speed and efficient production
- ● Operator-friendly interface and ease of use
- ● Robust and durable construction
- ● Low energy consumption
- ● Precise cutting and minimal waste
- ● Advanced automation and control
Applications
- ● Reinforced bag production
- ● T-shirt bag production
- ● Bag and garbage bag production
- ● Plastic packaging production lines
- ● Industrial bag production facilities
The ATK-900 cutting machine is the ideal production solution for all plastic bag production processes requiring high efficiency and precision.
