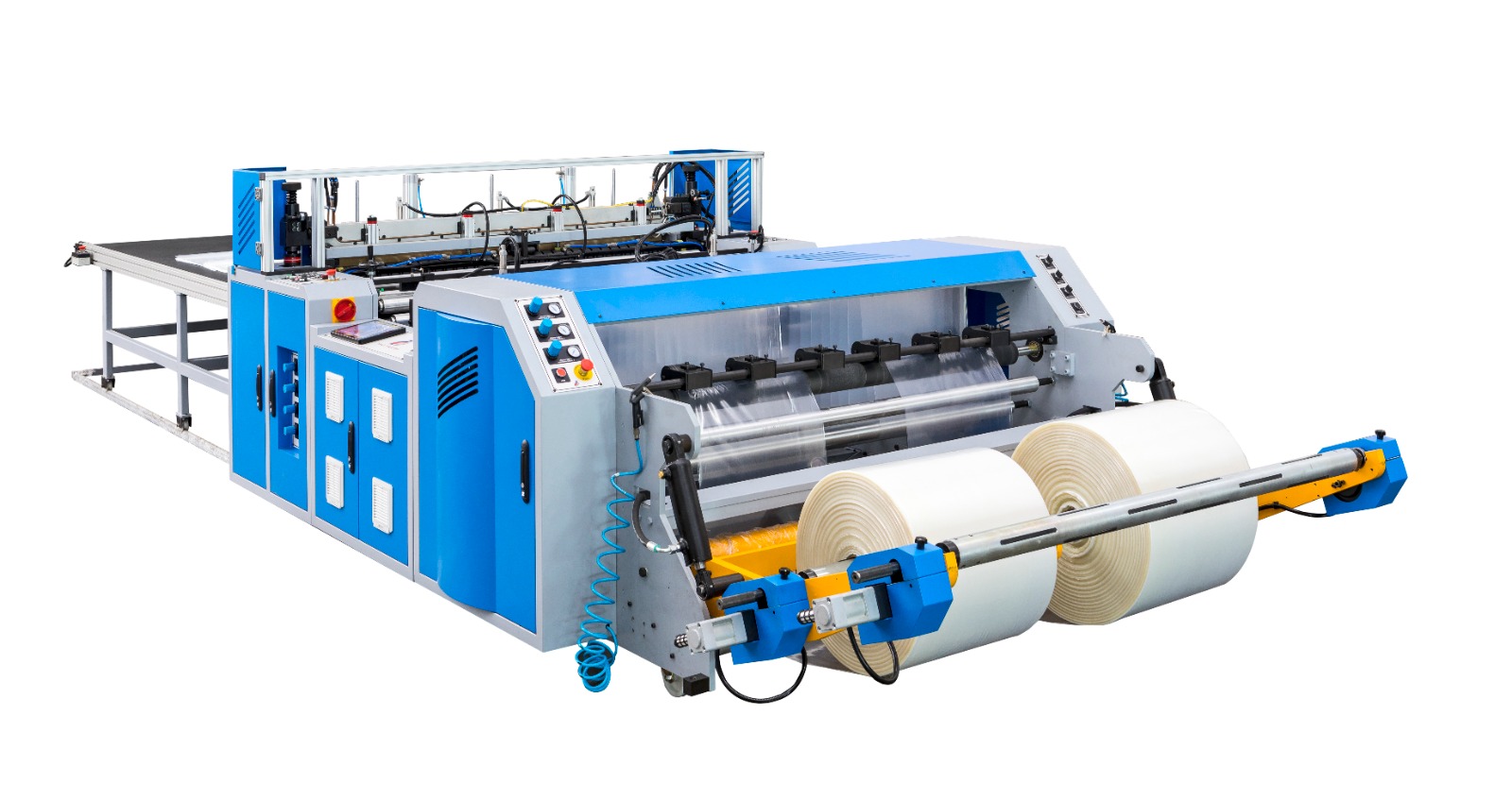

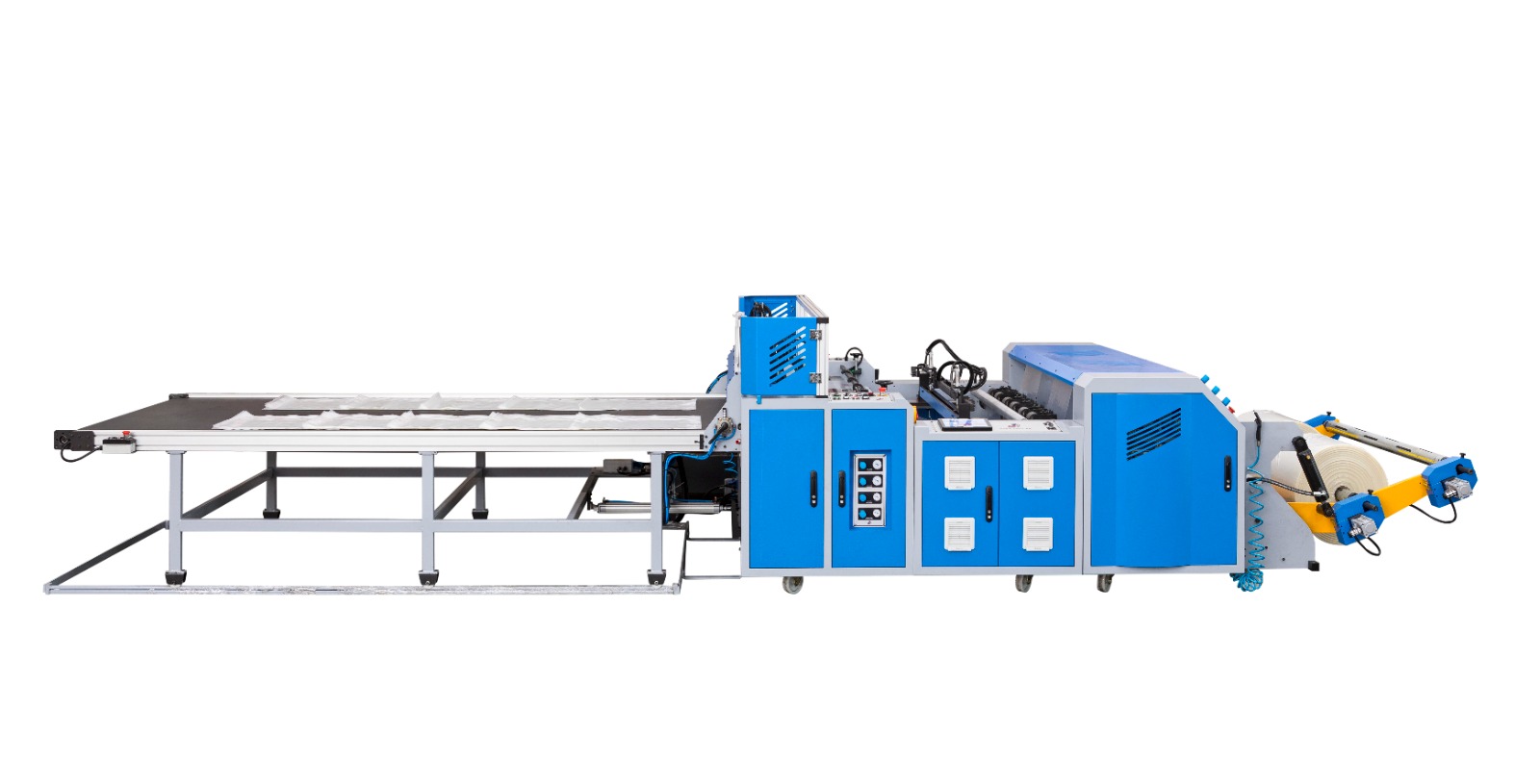

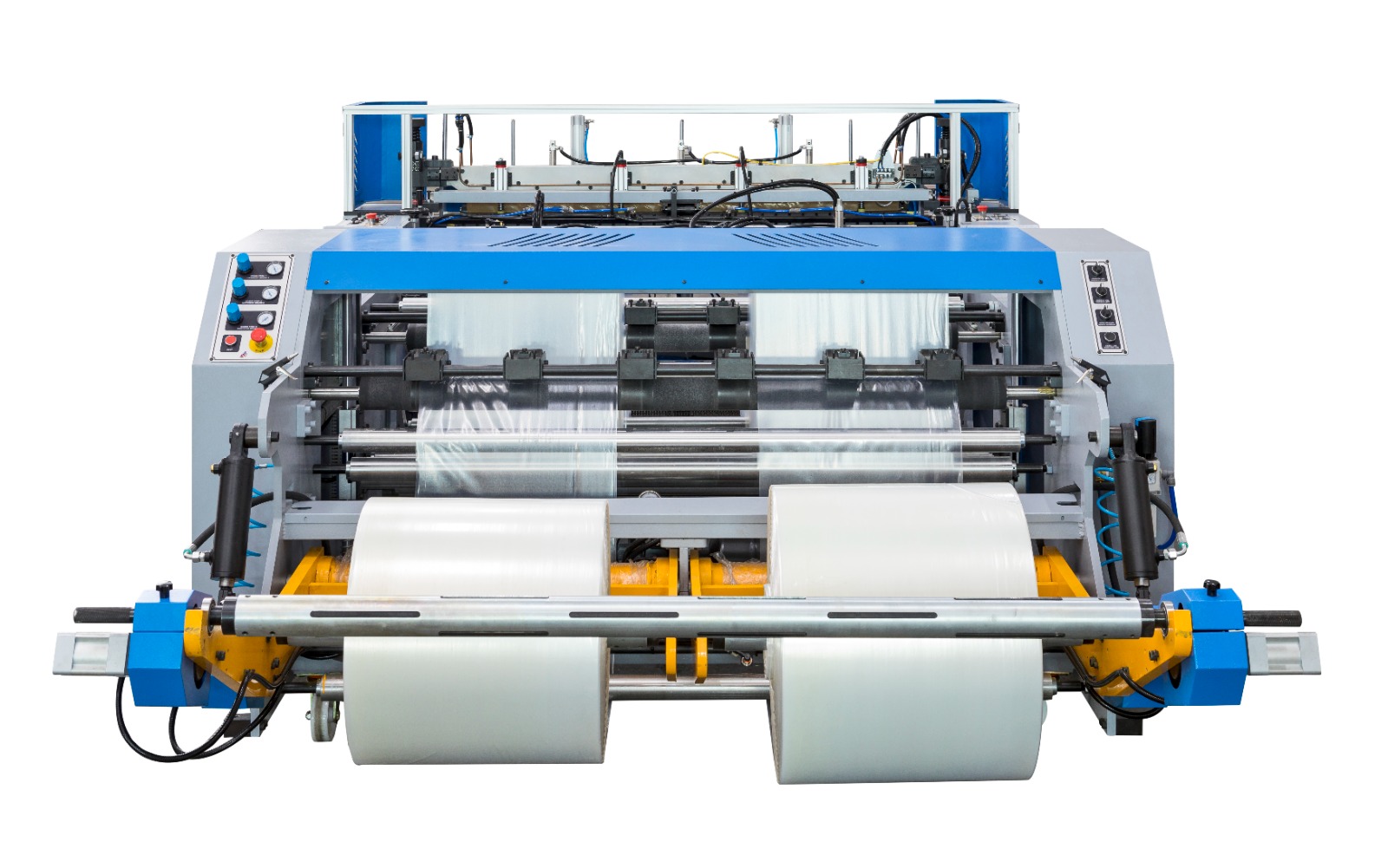

ANKA1600 BS Block Cutting Machine
APPLICATION AREA :
Produces bottom-sealed bags and block bags (Perforation and handle punching processes are not performed on this machine).
- » Cold cutting system.
- » Stacks from 1 cm inside the open end of the bag with cold needle system.

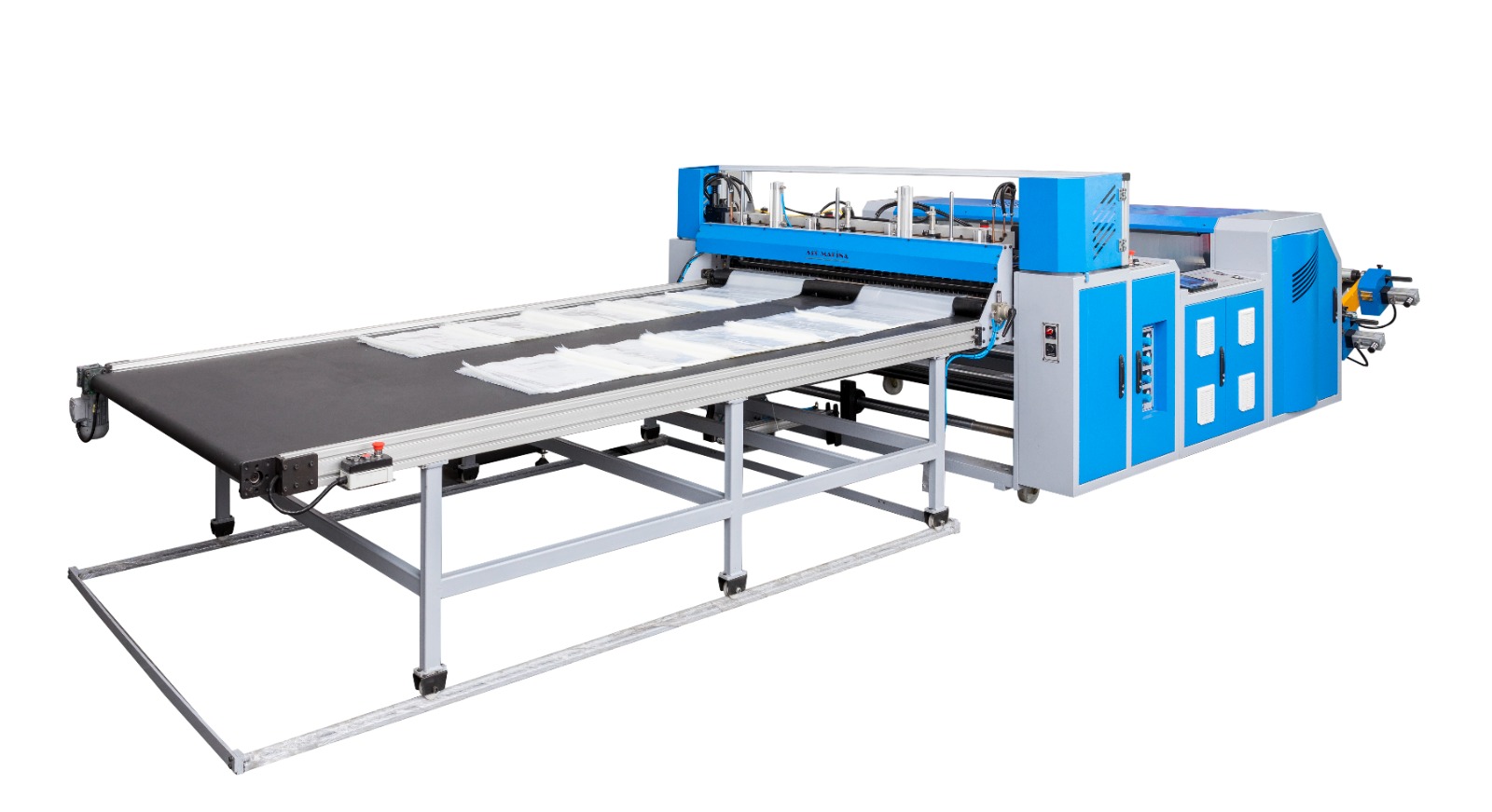

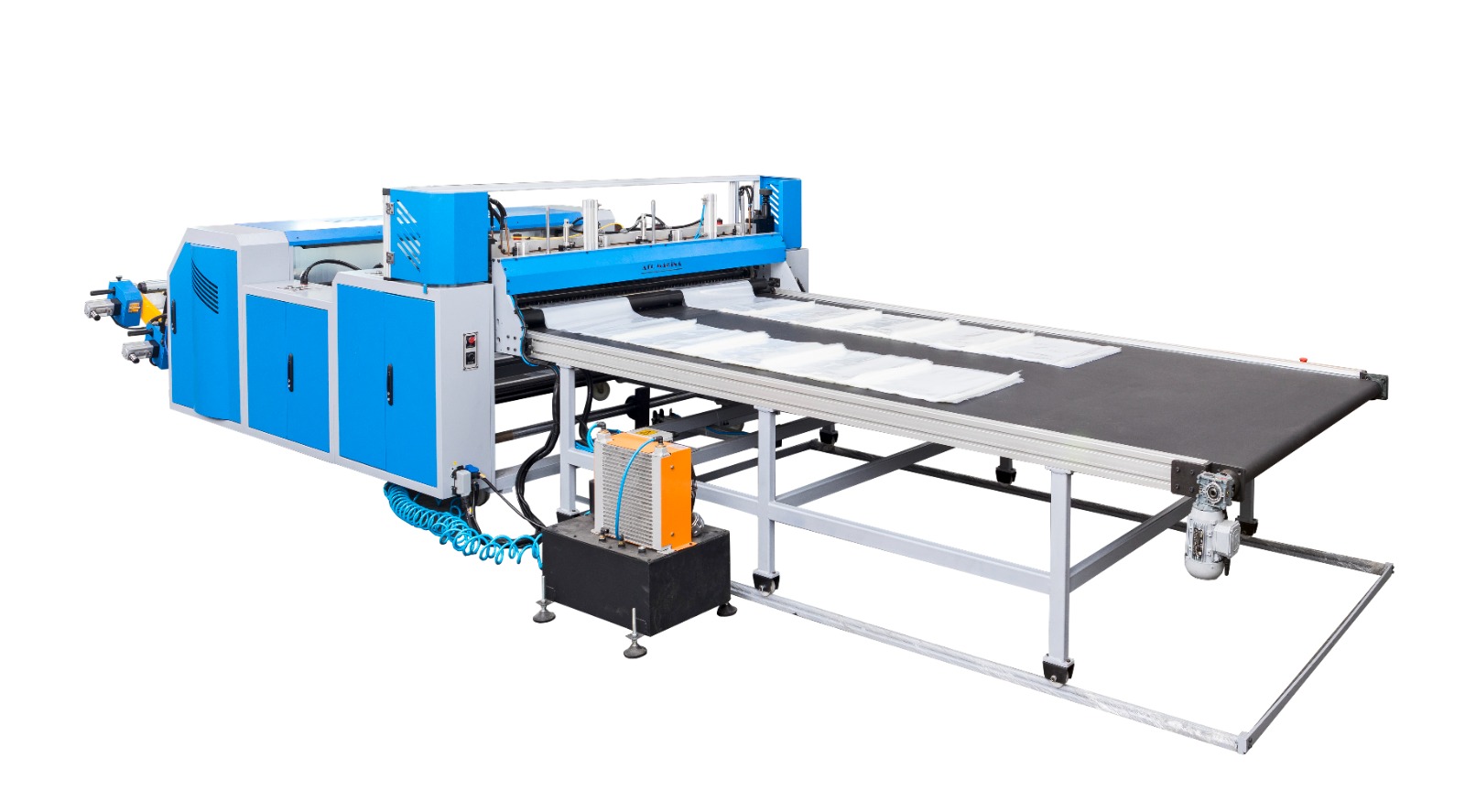

- » Cut bag packages are arranged on the conveyor. The conveyor belt is supplied as standard with the machine.
- » Servo motor and inverter system.
- » Bag length and bag quantity can be changed via the screen. Bag counting and machine speed can be monitored on the screen.
- » Equipped with 1 photocell. Cuts printed and non-printed bags.
- » Suitable for High Density Polyethylene (HDPE), Low Density Polyethylene (LDPE) and recycled bags.
- » When the roll ends, printing is out of position, or bags accumulate at the jaw, the machine stops automatically and displays information on the screen.
TECHNICAL SPECIFICATIONS:
| Model | ANKA 1600BS |
| Bag Width | 1600MM |
| Bag Length | 150-4000MM |
| Film Thickness | 0,010-0,300MM |
| Conveyor Length | 3500MM |
| Production Speed | pcs/min -125/80 meters |
| Total Air Consumption | 280-(liters) |
| Total Power | 18KW |
| Material Used | (HDPE) (LDPE) |
| Pneumatic | Festo |
| Sensor | Sick |
| Unwinder Motor | 1.1 WAT or ELK |
| Unwinder Dancer Motor | 1.1 WAT or ELK |
| Conveyor Motor | 0, 1 8 WATT or ELK |
| Servo Roller Motor | Lenze 4.0 kw |
| Jaw Servo Motor | Lenze 6.0 kw |
| AC Drives EtherCAT System | Lenze |
| PLC System | C 300 Lenze |
| Heat Module | Autonics |
| EtherCAT Modules | Lenze |
| Steel Body Buttons | Schneider |
| Static Eliminator | Puls |
| Screen | Touchscreen |
| Connection Type | Mobile Connection Remote |
